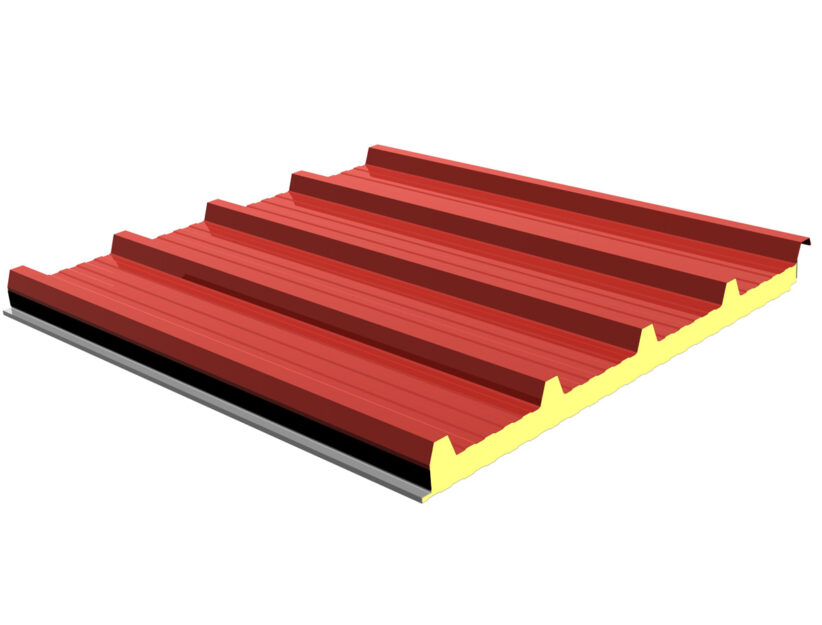

The Roof Panel 5 Ribs PUR/PIR AIS 5G is a trapezoidal sandwich panel, consisting of two galvanized steel plates, the upper one with 5 ribs (two lateral and three intermediate to provide greater mechanical resistance) and a lower one with or without micro-ribbing, which are bonded in a continuous manufacturing process to a hard core of polyurethane (PUR) or polyisocyanurate (PIR) foam at a density of 36-40 kg/m3.

The panel is designed for roofs with a minimum slope of 5%, although over 7% is recommended, on any metal, wood or concrete support. The flange of the integrated lateral overlap in a false rib forms the joint between two panels, enables rapid fitting, watertight assembly and good appearance of the roof.

We have all the auxiliary fastening elements required, screws, Capelotti joint covers and trims for the 5G Panel, compatible polycarbonate sheets for natural light and static aerators for ventilation.

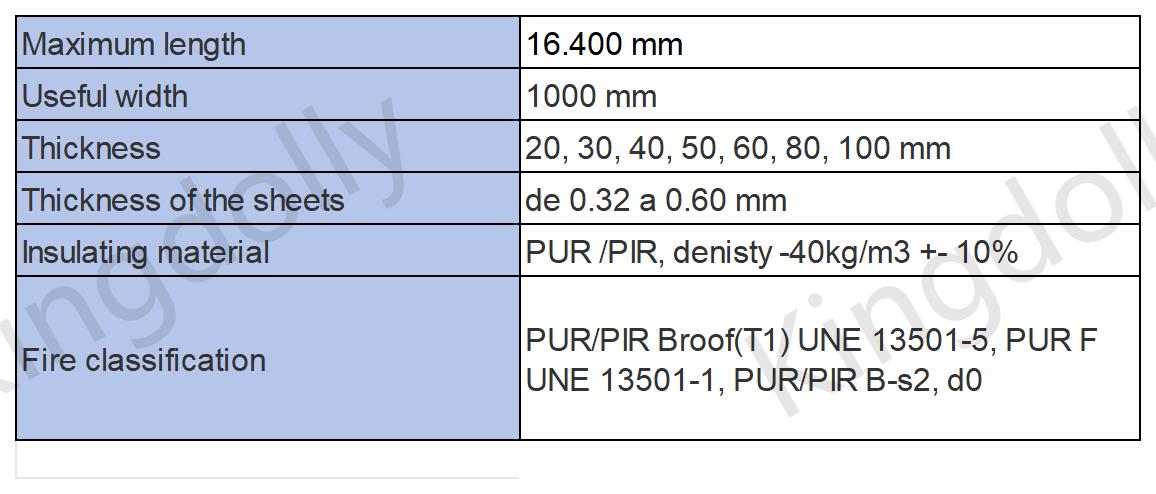

As with all our panels, the AIS 5G Panel is customisable by selecting the type of cladding, colour and profile of the lower sheet. Please see the technical data sheet for further information.
