Panel advantages:

☆ 4 high ribs roof panels, this improves the drainage capacity of the total roof system;

☆ Cost effective metal panel type, it can reduce your total project budget;

☆ Lightweight for installation, but excellent mechanical properties;

☆ This type can be used as both roof panel and wall panels.

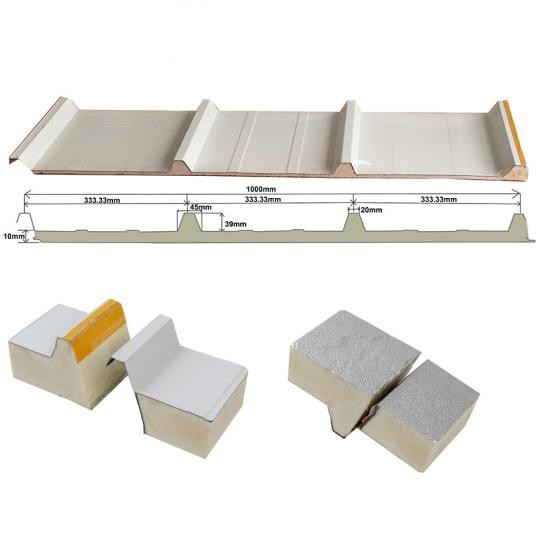

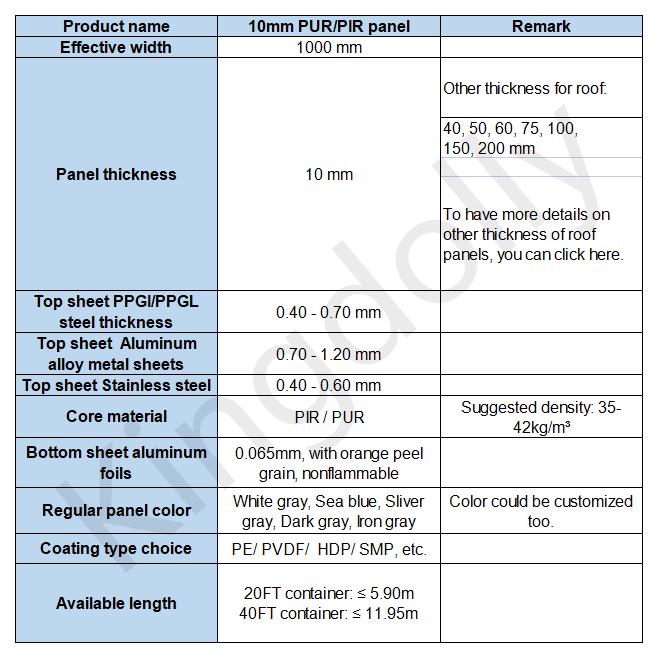

Panel details:

The surface is with 2 profiled on each panel surface, and the bottom is with nonflammable aluminum foils. As per different options, you can choose polyurethane or polyisocyanurate as core material, but density should be at least 35 kg/m³. For more details, you can download the catalog on this page.

Applications & Renderings:

This insulated metal panels can be widely used as external roofs or walls of factories, warehouses, freezing storage, workshops, poultry farms, supermarkets, exhibition halls, gymnasiums, schools, dormitories, mobile homes, residential houses and many other non-industrial facilities.

Sometimes if you want to replace the old roof,  this kind of laminated panels is also a good choice.

The following one is a reference project of roof renovation:

As wall insulated panels of factory building:
